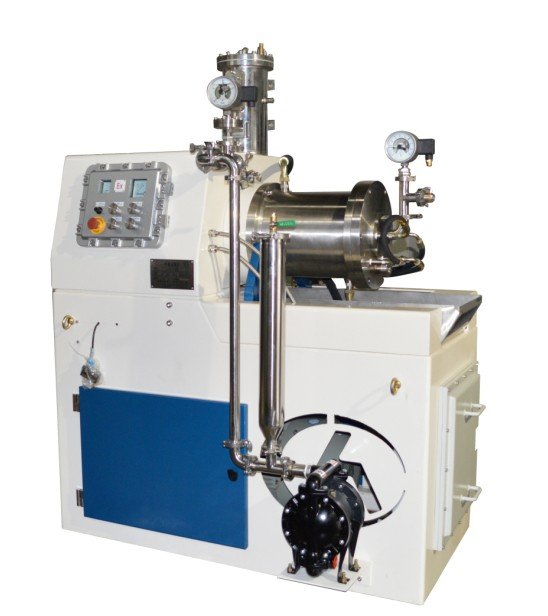

PT10L渐开线销棒纳米砂磨机



特点/Features

◆销棒式结构，渐开线销棒纳米砂磨机。特点：防堵塞、大流量、超精细研磨

◆采用进口特种筛网分离器、不堵塞、大流量、超耐磨，适用于0.2-1.2mm的研磨介质

◆研磨部件（可随用户选定硬质合金、陶瓷）、高耐磨、抗腐蚀

◆散热性，五路冷却：中心轴、端盖、研磨桶、密封系统、出料筛管座水夹套

◆采用双端面机械密封，耐受0.8mapa压力

◆精密进口轴承

◆电接点压力表

◆电接点温度计

◆防爆等级：Exe dII BT4

◆送料泵浦

◆白色产品不变灰

◆Peg structure, anti-clogging, high flow, ultra-fine grinding

◆Imported special mesh separators, non-blocking, high flow, ultra wear-resistant, use of 0.2-1.2mm grinding media.

◆Grinding parts (Available for user-selected carbide, ceramics), high wear-resistance, corrosion resistance

◆Excellent heat dissipation, 5-way cooling system : central axis, end caps, grinding barrels, sealed system, discharging

water jacket seat

◆Double acting mechanical seal, tolerance 8mpa pressure.

◆Imported precision bearings

◆Electrical contact pressure meter

◆Electrical contact thermometer

◆Explosion-proof grade: Exe dll BT4

◆Feeding Pump

◆White Product uncontaminated

技术数据/Technical Data

型号/Model PT10L

容量/Capacity（L） 10

电动机功率/Motor Power（KW） 22

冷却水/Cooling Water（m3/h） 2000

产品流速/Product Flow Rate(L/h) 300-1000

空气压力/Air Pressure(bar) 3.4-4.8

研磨介质/Grinding Media(φmm) 0.2-1.2

净重/Weight(kg) 1000
